Nd Yag Laser Tattoo Removal

Laser Tattoo Removal, Q Switched Nd Yag Laser Tattoo Removal, 532nm 1064nm 1320nm Wavelength

How it works
Based on the concept of light absorption – some pigments absorb some wavelengths of light better than others, such as the wavelength of 1064nm or 532nm will be absorbed by certain pigments used in tattoos.
Tattoo removal works by breaking up tattoo ink particles trapped in the skin. When choosing a proper laser, it will be pulsed over the tattoo and direct its energy towards the ink. The energy will soon be absorbed by tattoo ink particles, which instantly shatter into tiny fragments. Some of the fragments will disappear, and other will be discharged from our body with the help of immune system after a short period of time.
Since our skins only absorbs a small amount of energy from lasers with a wavelength of 1064nm or 532nm, an optional locating and shattering towards tattoo inks will be produced without scarifying the surrounding skins.

Application
1. Remove tattoo, including red, brown, blue and black
2. Remove tattoo of eyelid, eyebrow, eye line, lip line, etc
3. Remove freckles, foxiness, coffee, superficial and deeper speckles, age pigment, birthmark, nevus, sunburn spots, traumatic pigmentation
4. Black doll head is for skin whitening, skin rejuvenation

Features
1. No scars, no marks or any damages.
2. Selective absorb system, no harm to the normal tissue.
3. Instant effect, high customer satisfaction.

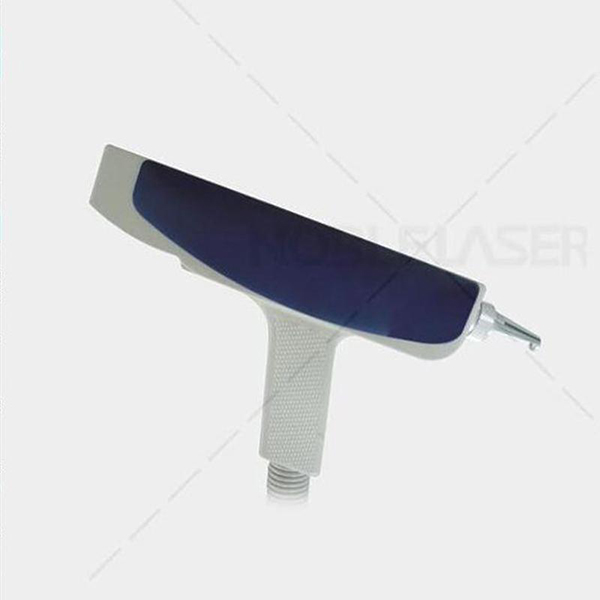

4. High power handpiece, strong output energy, 532nm, 1064nm and black doll heads.
5. Integrated laser cavity, anti-vibration and anti-swing, no beam deflection.
6. Car-used radiator, higher efficiency, long continuous working time.
7. Handpiece with infra-red indicator is available.

Specification
Laser Type Q-Switched Nd: YAG laser
Cartridge 1064nm+532nm+Black doll(1320nm)
Power 500W
Pulse energy 1000mj
Duration (Width) 6ns
Pulse Repetition Rate 1-6Hz
Voltage 500-1000V
Indicator Infrared indicator is available
Treatment Area 1mm² - 7mm²
Cooling System Air + water cooling
Tilt Sensor Available
Screen 5.7~10.4 inch color touch screen
