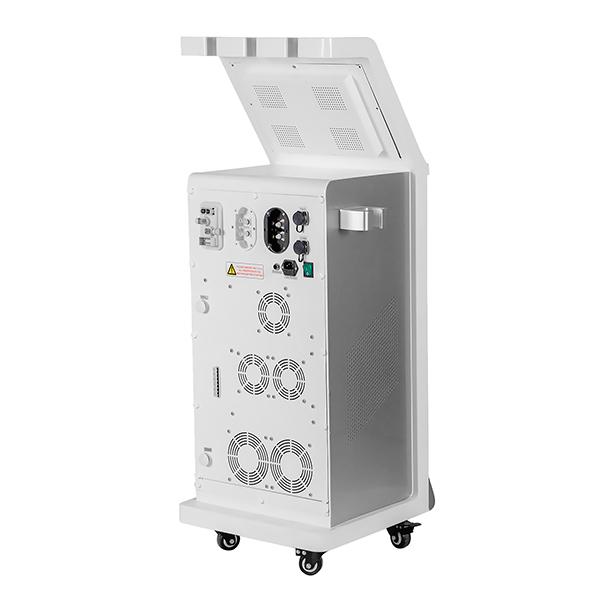

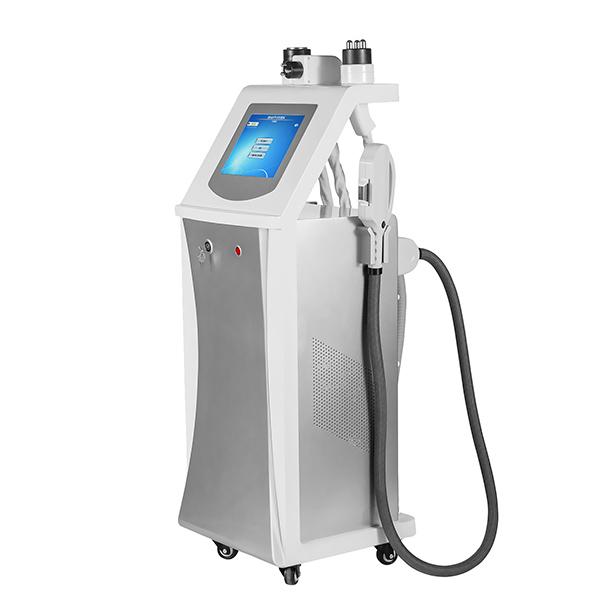

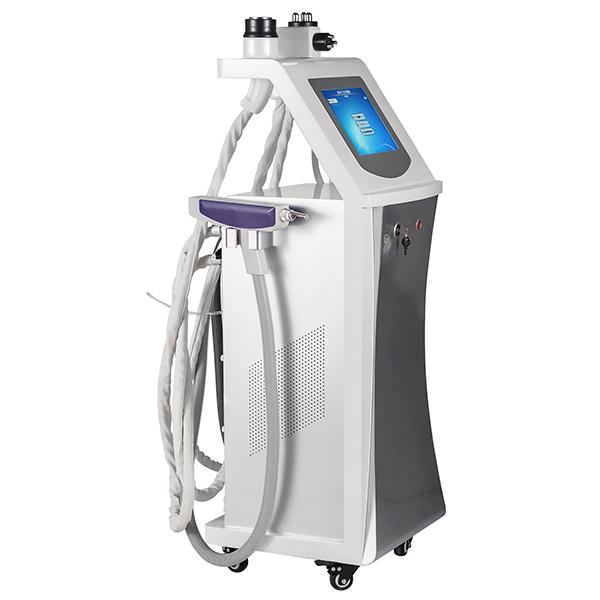

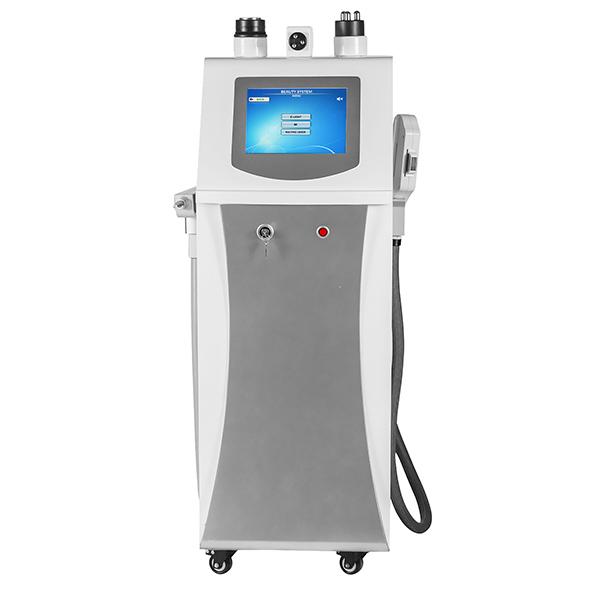

E-light RF Nd:YAG Laser Beauty Machine

Applications
1. The E-light RF Nd:YAG laser beauty machine is used for treating acne and removing acne scars.
2. The laser beauty equipment is applicable to removing facial spots, freckles, age pigment and sunburn.
3. Skin rejuvenation, wrinkles removal, skin tightening, face lifting
4. Treat telangiectasia, improve bottle nose and rubeosis
5. Permanent hair removal
6. Also the E-light RF Nd:YAG laser beauty machine can be used to remove all kinds of tattoos from body, eye line, lip line and so on.

Advantages
1. This laser beauty machine combines 3 systems in one machine and can work separately
2. High energy outputs, high effective.
3. Different IPL spot size suitable for different area treatment
4. Powerful refrigeration system, Adjustable cooling level control by software.
5. 10.4 LCD color touch screen
6. Expert system with skin type and skin color selectable
7. Adjustable cooling bipolar RF system
8. 1064nm,532nm and Black Doll head for Nd:YAG Laser
9. USA & German standard hand piece fast connection
10. Semi-conductor cooling head and water cooling system
11. CE Medical approved, ISO13485,93/42/EEC standards production processes
12. 24 hours continuous work

Specification
E-light IPL system Nd yag laser tattoo removal system
Display 10.4 inch LCD color touch screen Laser Type Q-Switched Nd: YAG laser
Lamp-house Super intense pulsed light Wavelength 1064nm&532nm&1320nm
Range of Spectrum 480-950nm: remove acne Pulse energy Single Pulse: 1000mj
560 -950nm: skin rejuvenator Duration (WIDTH) 6ns
590-950nm: remove vessel Voltage 500-1000v,Adjustable
640 -950nm: remove unwanted hair Pulse Repetition Rate 1-6Hz,Adjustable
690-950nm:remove unwanted hair,opitional Indicator light Ruby indicator
755-950nm:remove unwanted hair,opitional Treatment Area 1mm2 - 7mm2
810-950nm:remove unwanted hair,opitional Cooling Method Closed deionized water cycle
RF Frequency 3MHZ Independent RF system
RF Power 1-100J/CM3 Tripolar RF system
Density of Energy 1~50J/cm2 Frequency 1-40MHz , adjustable
Size of Spot 12*30mm2, 13*40mm2, 16*50 mm2 Handle of RF one body RF+ one face RF
Amount of pulse 1~6,adjustable Energy 5~450J , adjustable
Interval of Pulse 1~99ms,adjustable Biopolar RF system
Sub-pulse Width 0.1~9.9ms,adjustable Cooling control 0°C~30°C adjustable
Cycle 1~4s,adjustable Handle one handle for Body
Cooling Way semi-conductor& water&air cooling Energy 5~450J , adjustable
Cooling Tempreture -5-5 °C Connector Plug and play
Power Supply 220V/110V ±10% 50Hz/60Hz

Theory
Elight:
The E-Light technology fully combines the advantages of optical energy and radio frequency. With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, the targeted tissue absorbs radio frequency with lower optical energy. So with a very low risk of side effects-pigment lesion, blistering-generally caused by higher optical energy, we are able to achieve good result with comfortable treatment. The traditional IPL device can only reach 2mm into the skin, however, the E-light creates a deep penetration into the dermis about 15mm, which can achieve more applications, especially on wrinkle treatments and skin tightening.

RF:
It uses 1-40MHz radio frequency to alternate the electric field in the skin from positive to negative. It will produce heat under dermis then the initial collagen denaturation. The adjuvant therapy of 635nm Diode laser greatly promotes the RF treatment effect. Subsequent neocollagenesis then further tightens the dermal tissue and make the skin tightening, smooth and fresh!

ND YAG laser:
It uses the theory that specific wave length (1064nm or 532nm) of laser will be absorbed by specific pigment. The high energy of laser, absorbed by the specific pigment, could cause the pigment to swell and explode, partial fragments of the pigment will be shot out of the body, and the other pigment fragments will be removed by your body's immune system over a period of time. Because the normal skin absorb little energy induced by laser at the wavelength of 1064nm or 532nm, so the laser could selectively targets and destroys tattoo pigments but not damage the surrounding normal tissues.
