Fractional CO2 Laser Machine

Fractional CO2 Laser Machine
Legend-B
Fractional CO2 Laser Machine
Legend-F

How it works
Fractional CO2 laser system fires a laser beam which is split into numbers of microscopic beams, producing tiny dot or fractional treatment zones within the selected target area only. Therefore, the heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. During the skin self-resurfacing, a great amount of collagen is produced for skin rejuvenation, eventually the skin will look much healthier and younger.

Applications of Fractional CO2 Laser Machine
1. Skin renewal and regeneration.
2. All colors tattoo removal.
3. Remove all kinds of wrinkles.
4. Remove acne and scars.
5. Remove neoplasms.
6. Remove pigment.
7. Treat telangiectasis.
8. Sun damage recovery and skin renewing.
9. Actenic keratoses.
10. Face lift, tighten and whiten skin.
11. Pierce ears.
12. Effective treatment with skin hydroponic, skin rough.
13. Teeth whitening.
14. Vaginal tightening.
15. E.N.T treatment.

Advantages of Fractional CO2 Laser Machine
1. Large LCD color touch screen, most humanist software control.
2. 7-jointed arm light conduct, more convenient operating, less costs, 12 shapes for chosen.
3. Use scanning field lens instead of focusing lens for better evenness for scan in a flat, the diameter of spot only 0.1mm.
4. Scanning heads, cutting heads, E.N.T.&dental heads, gynecology heads, andrology heads are suitable for more applications.
5. Powerful software adjusts parameter easily. There are multiple graphics and scanning modes for your selection. Moreover, the graphics could be two-way adjusted.
6. Continuous, super pulse, fractional different Operation Modes. There is a wider use in clinical application.
7. Focal spot diameter and interval are adjustable. Patient’s unique needs can be met during treatment.
8. The best USA RF laser tube, stable performance, high effective, no consumable costs.
9. Inhale and deflate air system is available.

Specification
Light conducting system 7 jointed arms to conduct light
Laser Metal RF driver tube (USA coherent)
Available treatment heads Scan
UltraPulse
Dental
Gynecology
Andrology
Wavelength 10.6µm
Power 30W
Mode Scan, Normal
Laser energy 5-120mj
Step value 5mj

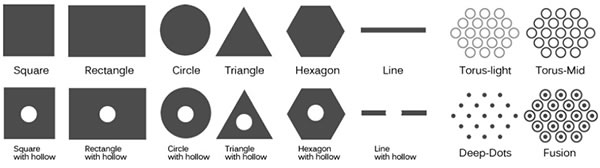

Scan patterns
Scan pattern size 0.1x0.1mm - 20x20mm
Scan Mode Random; Sequence
Dot quantity 10000 dots at most
Pulse duration 0.2-4ms
Spot distance 0.1-2mm
Pulse energy 1mj to 120mj
Cooling system Air cooling
Laser apparatus Sealed off laser device stimulated by direct current
Condenser focus f=50mm
Spot size 1.8±0.2mm
Radiation time 0.011s
Preview Yes (635nm infrared ray)
Screen 5.7~10.4 inch color touch screen
