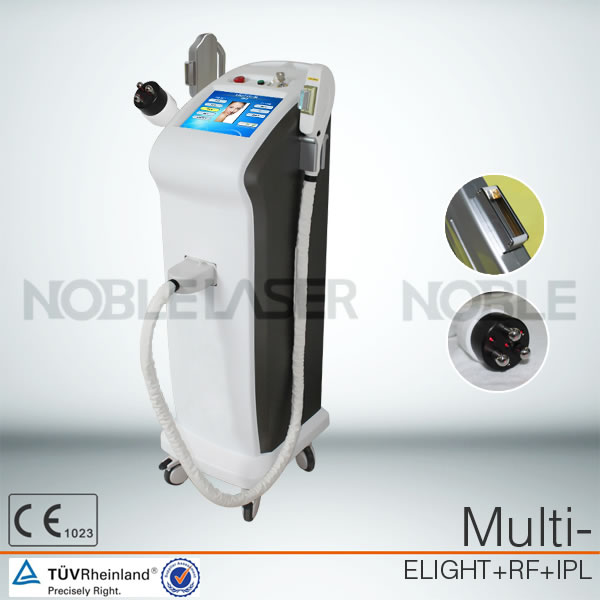

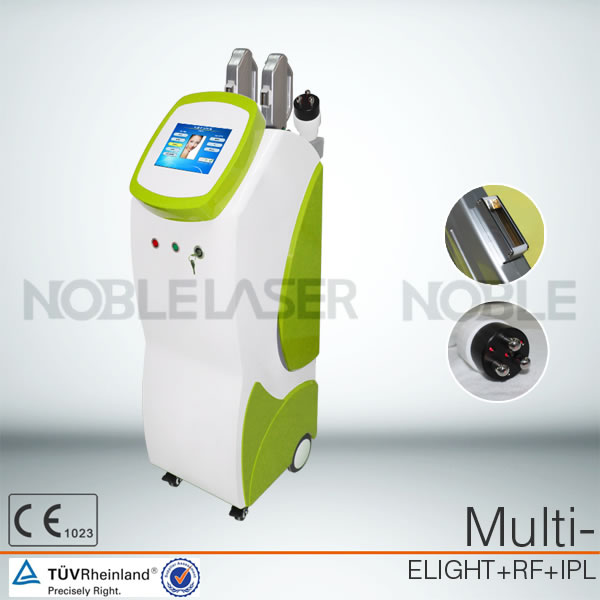

E-light IPL RF Beauty Equipment

  •  E-light IPL RF Beauty Equipment
  •  E-light IPL RF Beauty Equipment

Applications
1. The E-light IPL RF beauty equipment can be used to treat acne and remove acne scars.
2. It is also applied to removing facial spots, freckles, age pigment and sunburn.
3. Skin rejuvenation, wrinkles removal, skin tightening, face lifting
4. Also the E-light IPL RF beauty equipment is used for treating telangiectasia, and improving bottle nose and rubeosis.
5. Permanent hair removal

Advantages
1. The beauty equipment is a 3-system (IPL, E-light and RF)-in-1 machine.
2. RF can be mono-polar, bi-polar and tri-polar, and the frequency is adjustable between 1-40MHz.
3. Microcomputer control system makes all the functions work well.
4. 5 in1 filters deal with high quality film coating, with fast connection plug.
5. Water and electricity integrated applicator is convenient and safe to install and replace.
6. Semiconductor, wind and water cooling system makes treatment more comfortable.
7. CE standard Power Supply has good electromagnetic compatibility.
8. The water tank of the E-light IPL RF beauty equipment has higher efficiency and better cooling effects.
9. Color touch screen with friendly interface makes it easy to set up treatment parameters.
10. Aluminum case package makes it more suitable for transportation.

Specification
Basic Specification
Screen 8.4~10.4 inch color touch screen
Cooling System Air+Water+Semiconductor cooling
E-light+IPL
Type Super Intense Pulsed Light


Wavelength
480-950nm: remove acne
530 -950nm: pigmentation treatment
560 -950nm: skin rejuvenation
590-950nm: remove vascular
640-950nm: remove hair
690-950nm/755-950nm/810-950nm: remove hair (optional)
RF Frequency 3MHz
RF Energy l-100J/cm2
IPL Energy l~50J/cm2
Power Supply Max 2500W
Spot Size Filter handpiece: 12*12mm2/ 12*30mm2,13*40mm2,15*50 mm2
Filter fixed handpiece: 8*40mm2,14*40mm2,16*50 mm2
Pulse Number 1~6T
Pulse Interval l~99ms
Pulse Width 0.1~9.9ms
Discharge Interval l~4s
RF Delay l~3s
Cooling Temperature -5~5°C
RF
Output Mode Tripolar
Energy 5~450J
Frequency 1-40MHZ

Theory
Elight:
The E-Light technology fully combines the advantages of optical energy and radio frequency. With the impedance difference in skin and pre-heat produced when the skin selectively absorbs optical energy, the targeted tissue absorbs radio frequency with lower optical energy. So with a very low risk of side effects-pigment lesion, blistering-generally caused by higher optical energy, we are able to achieve good result with comfortable treatment. The traditional IPL device can only reach 2mm into the skin, however, the E-light creates a deep penetration into the dermis about 15mm, which can achieve more applications, especially on wrinkle treatments and skin tightening.

IPL:
IPL (Intense Pulsed Light) adopts the principle that substance absorbs light selectively. As different target tissues absorbs pulsed light with different spectrum and the light acts on pigment. Through photo thermal and actinism, the machine could dispel pigment, concrete blood vessel, burn the hair follicle and stimulate the collagen to regeneration, then it will achieve the aim to dispelling speckles, treating telangiectasis, removing hair and rejuvenating skin. Because the normal skin absorbs little energy, so the treatment is safe.

RF:
It uses 1-40MHz radio frequency to alternate the electric field in the skin from positive to negative. It will produce heat under dermis then the initial collagen denaturation. The adjuvant therapy of 635nm Diode laser greatly promotes the RF treatment effect. Subsequent neocollagenesis then further tightens the dermal tissue and make the skin tightening, smooth and fresh!
